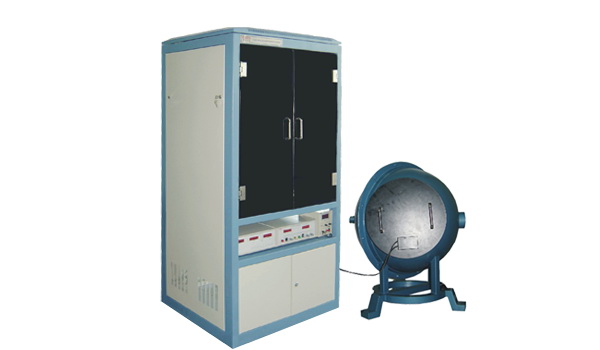

FPDM-101 Optoelectrical Measurement Optical System
To determine luminance, chromaticity, uniformity, correlated color temperature, color gamut, contrast ratio (dark-room & bright-room), viewing angle for contrast, response time, flicker, luminous efficacy and consumption; to inspect dot/line/plane defects and corresponding direction
- Parameter
- Guide
Functions:
To determine luminance, chromaticity, uniformity, correlated color temperature, color gamut, contrast ratio (dark-room & bright-room), viewing angle for contrast, response time, flicker, luminous efficacy and consumption; to inspect dot/line/plane defects and corresponding direction
To determine luminance, chromaticity, uniformity, correlated color temperature, color gamut, contrast ratio (dark-room & bright-room), viewing angle for contrast, response time, flicker, luminous efficacy and consumption; to inspect dot/line/plane defects and corresponding direction
Specifications:
>>Max DUT: 17" / 5Kg
>>Luminance accuracy: 1%
>>Chromaticity accuracy (x, y): 0.002
>>Luminance meter: quick scan spectroradiometer
>>Wavelength range: 350nm - 800nm
>>Minimum sampling interval: 2.0us
>>Contrast ratio (bright-room) measuring method: sphere-outside diffuse illumination
>>Lighting sources: 2856K tungsten light, D65 daylight and other customized
>>Image resolution: 10um
>>Max DUT: 17" / 5Kg
>>Luminance accuracy: 1%
>>Chromaticity accuracy (x, y): 0.002
>>Luminance meter: quick scan spectroradiometer
>>Wavelength range: 350nm - 800nm
>>Minimum sampling interval: 2.0us
>>Contrast ratio (bright-room) measuring method: sphere-outside diffuse illumination
>>Lighting sources: 2856K tungsten light, D65 daylight and other customized
>>Image resolution: 10um
