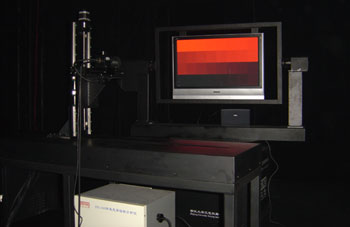

FPDM-108 Optoelectrical Measurement System
To measure the luminance, chromaticity coordinates (x, y), uniformity, correlated color temperature, color gamut, contrast ratio (dark-room & bright-room), response time and viewing angle of PDP & LCD displays in accordance with requirements of IEC/VESA standard
- Parameter
- Guide
Functions:
To measure the luminance, chromaticity coordinates (x, y), uniformity, correlated color temperature, color gamut, contrast ratio (dark-room & bright-room), response time and viewing angle of PDP & LCD displays in accordance with requirements of IEC/VESA standard
Specifications:
>>Meets IEC, VESA FPDM2.0
>>Goniophotometer with East Polar & North Polar structure in VESA standard
>>Laser alignment for DUT's installation
>>3-axis moving table for LMD & 2-axis rotating table for DUT
>>High sensitivity spectroradiometric luminance meter
>>Max dimension of DUT: 56 inch
>>RS232C / USB 2.0
>>Optional accessories
