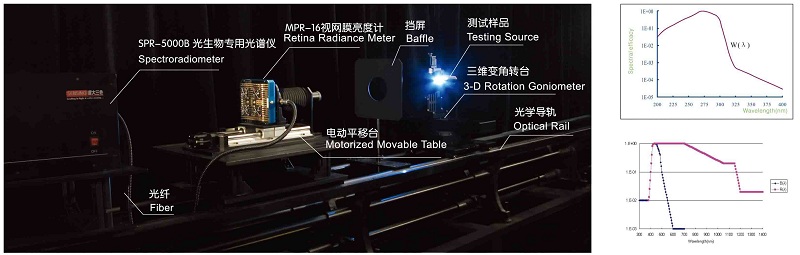

SPR-5000 Optical Radiation Safety Testing System
The system is specially designed for determining the risk group of optical radiation hazard specified in IEC 62471,such as actinic UV hazard exposure for the skin and eye, near-UV hazard exposure for the eye, retinal blue light hazard exposure, retinal thermal hazard exposure from LED products, UV-lamps, lighting sources and luminaires etc.
- Parameter
- Guide
The system is specially designed for determining the risk group of optical radiation hazard specified in IEC 62471,such as actinic UV hazard exposure for the skin and eye, near-UV hazard exposure for the eye, retinal blue light hazard exposure, retinal thermal hazard exposure from LED products, UV-lamps, lighting sources and luminaires etc.
Functions:
- Measurement of spectral irradiance distribution
- Measurement of spectral radiance distribution
- Measurement of spatial radiance distribution
- Measurement of temporal performance
- Determination of apparent source
- Determination of effective photobiological hazard exposure
- Classification of optical radiation sources
Specifications:
- Wavelength range: 200nm to 3000 nm
- Wavelength accuracy:0.2nm
- Five detectors for measurement of different optical radiation hazards
- Radiance geometry:optics simulating to human eye,with 7mm input aperture
- Image radiance meter:16bits scientific cooling CCD,1600x1200 pixels
- Temporal response:2μs
- Field of viewing:1.0 mrad ~ 110 mrad
- Testing distance:200mm to 8m
Honor:
- Member of IEC TC76/WG9 for standardization of optical radiation safety
- Leading in the measurements of optical radiation related to photobiological safety
- Drafter of GB/T 20145 "Photobiological Safety of Lamps and Lamp Systems"
- Leading in China standardization of LED optical radiation safety
- Awarded as "China LED Technology Innovation Award".
