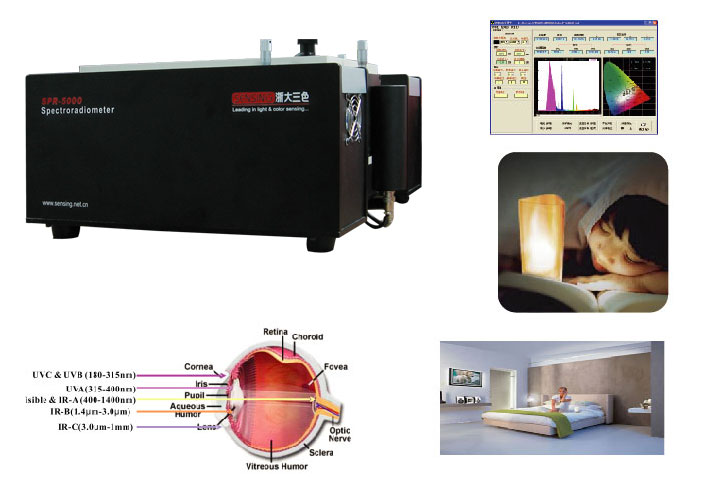

SPR-5000 UV-VIS-IR Spectroradiometer
According to the requirements of CIE NO.63, double dispersion with three monochromator and eight filters, four channels of detecting system to measure the spectral distribution in the spectral range of 200nm-3000nm (UV-VIS-IR) with high performance of low stray light, wide dynamic range, and high S/N ratio. It is ideal for radiation safety analysis of lighting products and LED devices.
- Parameter
- Guide
According to the requirements of CIE NO.63, double dispersion with three monochromator and eight filters, four channels of detecting system to measure the spectral distribution in the spectral range of 200nm-3000nm (UV-VIS-IR) with high performance of low stray light, wide dynamic range, and high S/N ratio. It is ideal for radiation safety analysis of lighting products and LED devices.
Specifications:
- Detector: Hamamatsu PMT/InGaAs/Pbs/Si
- Dispersion: Double dispersion with filters disc and monchromators (Three grating are optional)
- Spectral range: 200nm-3000nm
- Wavelength accuracy: 0.2nm,0.5nm
- Wavelength repeatability: 0.1nm
- Spectral Interval: 1nm, 2nm, 5nm
- USB2.0/RS232
