SPR-3000 Quick-Scan Spectroradiometer

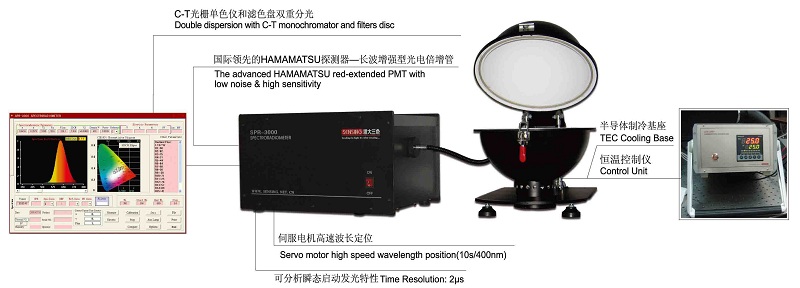

It is composed of C-T monochromator with grating dispersion, servo motor for high speed wavelength position, and high sensitive PMT. It could be widely used in fast measurement of spectrum, photometry and chromaticity.
- Parameter
- Guide
It is composed of C-T monochromator with grating dispersion, servo motor for high speed wavelength position, and high sensitive PMT. It could be widely used in fast measurement of spectrum, photometry and chromaticity. It could obviously reduce the effect of the light source, and also save the test time. Meanwhile, it could be used to analyze the flash run-up characteristics of light sources, warm-up time and spectrum of the starting time. It is suitable option for research of discharge and lifetime for light source starting.
Specifications:
- Spectral range: 350nm-800nm, 200nm-800nm(UV)
- Wavelength accuracy: 0.2nm
- Spectral interval: 0.1nm, 0.5nm, 1nm, 5nm
- Photometric accuracy:1%
- Fast measurement: 10s/400nm
- Sampling frequency: 500KHz
