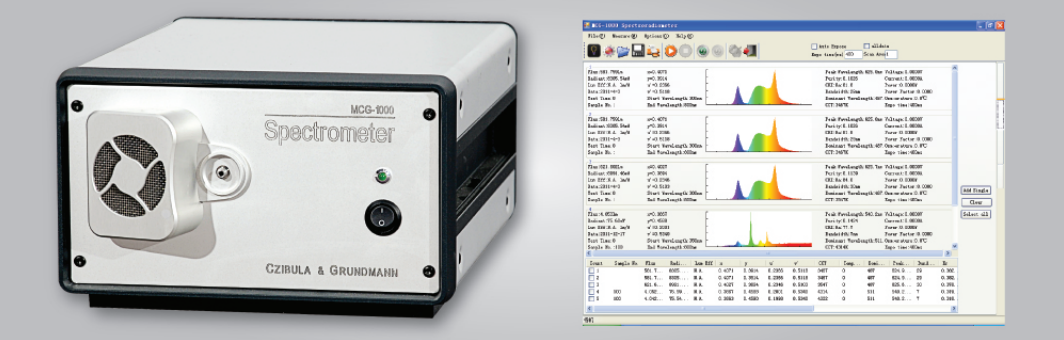

MCG-1000 Scientific Spectroradiometer
MCG-1000 is a scientific spectrometer developed by SENSING together with Germany well-known optical company, made in Germany. Patented ceramics structure of Zeiss and the holographic concave grating are used in inner optics system. H
- Parameter
- Guide
MCG-1000 is a scientific spectrometer developed by SENSING together with well-known German optical company, made in Germany. Patented ceramics structure of Zeiss and the holographic concave grating are used in inner optics system. Highest accuracy scientific grade back-thinned CCD area image sensor is used as the detector. With wide spectral range (200nm~980nm), low stray light, milliseconds measurement speed and scientific grade measurement accuracy, it is widely applied in the quick measurements of spectral power distribution, CCT, chromaticity coordinates, dominant wavelength, peak wavelength, color purity, color tolerance, CRI, luminous flux, radiant power etc.
Specifications:
- Detector:HAMAMATSU back-thinned CCD area image sensor with TEC cooling
- TEC cooler:-10℃, Temperature stability:＜±0.05℃
- Pixels:1024X128 (Binning mode is available)
- Spectrum range:200nm-980nm
- Digitizer (A/D):16bit
- Spectral reproducibility:0.1nm
- Spectral accuracy:±0.2nm
- Spectrometer module: MCS Polychromator
