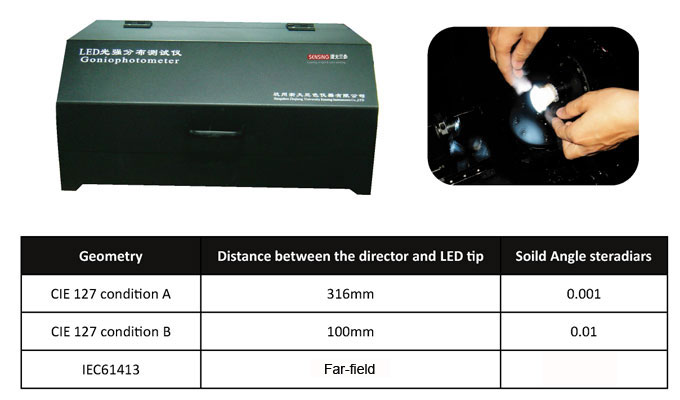

GMS-108 Mini-Goniophotometer
This device meets the requirements of CIE 127 Condition A and Condition B, CIE70, IEC 61341. User can get the parameters such as: luminous intensity spatial distribution, center intensity and beam angle, partial flux of LED device, LED modules.
- Parameter
- Guide
Function:Device meets the requirements of CIE 127 Condition A and Condition B, CIE70,IEC 61341. Tester can get the parameters such as: luminous intensity spatial distribution, center intensity and beam angle, partial flux of LED device, LED modules.
Specifications:
- Optional Measuring Distance: 100mm, 316mm, 1000mm;
- Photometry Type: Type C;
- Angle Accuracy: 0.05 Degree;
- High Accuracy Photodetector with fine V(λ) matching;
- Measuring Data could be represented in IES format;
- RS232C interface.
